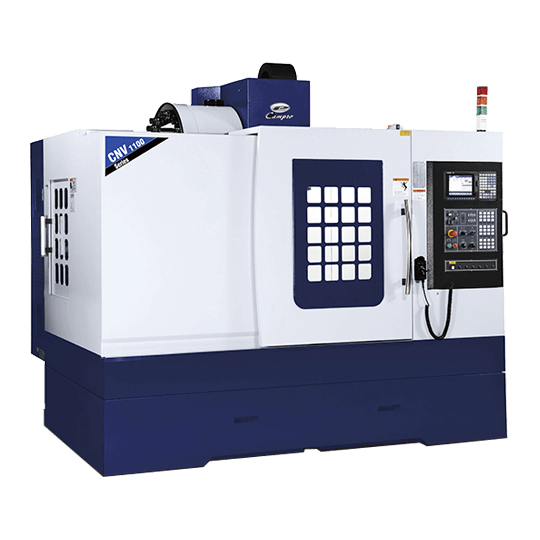

Vertical Machining Center
CNV-1100
X:1100 / Y:580 / Z:560 (mm)
The cast iron construction was designed using "Finite Element Analysis (FEA) and Advanced 3D Software and is extremely rigid and provides extremely accurate machining capabilities as well as high metal removal rates.
The CNV series was ergonomically designed from the movable control panel to chip disposal and many other design features to reduce operator fatigue and increase working efficiency.
Feature
Innovative Design Concepts
Box guideways on the Z-axis increases rigidity and minimizes vibration.
The X & Y axes utilize precision heavy loading linear guideways for high accuracy and high metal removal rates.
The counter-balance system is equipped with a guide rail to increase stability and avoid vibration during high feedrate or rapid traverse to ensure machining accuracy.
The extra wide base and massive saddle provides complete support for high accuracy and high metal removal rate machining.
Three blocks on the X-axis which provides full support for working table.
Machine Specification
| Item | Unit | CNV-1100 |
|---|---|---|
| Travel | ||
| X axis travel | mm (in) | 1,100 (43.3") |
| Y axis travel | mm (in) | 580 (22.8") |
| Z axis travel | mm (in) | 560 (22") |
| Distance from spindle nose to table surface | mm (in) | 90~650 (3.5" ~ 25.5") |
| Distance from spindle center to column | mm (in) | 630 (24.8") |
| Table | ||
| Table dimension | mm (in) | 1,200 × 550 (47.2" x 21.6") |
| Max. loading weight | kg (lb) | 700 (1,543) |
| T-slots (W x No. x P) | mm (in) | 18 x 5 x 100 (0.7" x 5 x 3.9") |
| Spindle | ||
| Spindle speed (OPT) | rpm | 8,000 (10,000 / 12,000 / 15,000) |
| Spindle motor | kW (HP) | 7.5 / 11 (15) |
| Spindle taper | type | 7/24 taper No.40 |
| Automatic Tool Changer | ||
| ATC type (OPT) | type | Arm type (Carrousel) |
| Tool shank | type | BT-40 |
| Pull stud | type | P-40T (45°) |
| Tool storage capacity (OPT) | pcs. | 24 (20) |
| Max. tool diameter | mm (in) | Ø80 (Ø3.1") |
| Max. tool diameter (Adjacent empty) | mm (in) | Ø150 (Ø5.9") |
| Max. tool length | mm (in) | 250 (9.8") |
| Max. tool weight | kg (lb) | 7 (15) |
| Tool change time (Tool to Tool) | sec. | 2.5 |
| Tool change time (Chip to Chip) | sec. | 7 |
| Feedrate | ||
| Rapid feedrate (X / Y / Z) | m (in) /min | 30 / 30 / 24 (1,181.1 / 1,181.1 / 944.8) |
| Cutting feedrate | mm (in) /min | 10,000 (393.7) |
| Other | ||
| Floor plan (W × D) | mm (in) | 3,370 × 2,500 (132" x 98") |
| Machine weight | kg (lb) | 6,700 (14,770) |
| Max. machine hight | mm (in) | 2,815 (110") |
| Air source | kg/cm2 (PSI) | 6~8 (85~113) |
| Power capacity | KVA | 15 |
