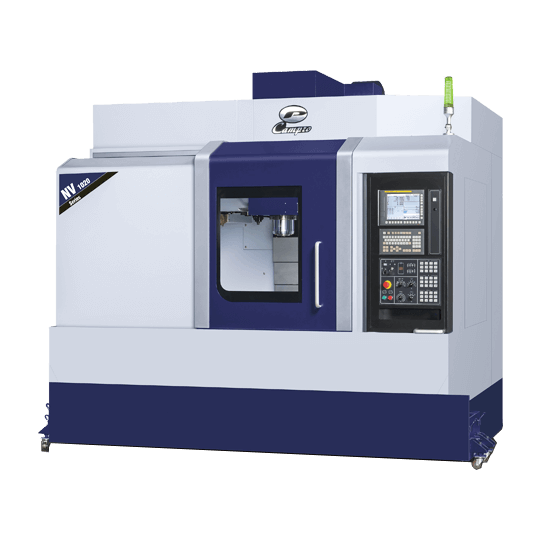

Vertical Machining Center
NV-1020
X:1020 / Y:610 / Z:610 (mm)
The NV-series smart vertical machining center has unique design on the loops and thermal symmetry structure of spindle which allows decreasing thermal deformation and increasing accuracy and stability.
The pleasant machine appearance combines aesthetics and ergonomics to get rid of the traditions, meets modern aesthetic needs. Campro ERP + IIoT provides Online Machine Monitoring, Machine Operating Monitoring, Machine Sensors & Trouble Shooting, Remote Control & Program Transmission, CPK Statistical Analysis for the factory of the future as Smart Factories - Factory to Factory and Global connection.

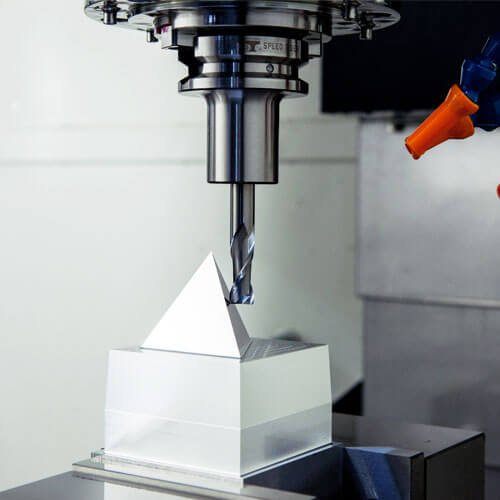

Feature
NV series provide more Y-axis and more working area to meet various demands.

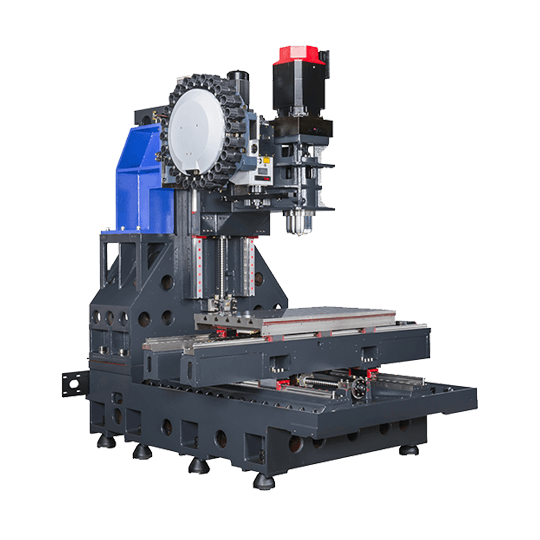

Heavy-duty roller type linear guideways on 3 axes which provide integration of heavy cutting ability from box way and fast movement ability from linear guide way.
Z-axis servo motor with brake replaces counter-balance to provide optimal surface accuracy on 3D machining.
Pretensioned class C3 precision ballscrews on 3 axes help to eliminate blacklash. Bearings with dust-protection device are assembled by 3 sets both in the front and rear.
One-piece column which designed with shoulder to support tool magazine to decrease vibration and increase the machine stability while tool changes.
Optional max. 4/5-axis table diameter allows more working area and less interference between cutting tools and workpieces.
Machine Specification
| Item | Unit | NV-1020 |
|---|---|---|
| Travel | ||
| X axis travel | mm (in) | 1,020 (40.1") |
| Y axis travel | mm (in) | 610 (24") |
| Z axis travel | mm (in) | 610 (24") |
| Distance from spindle nose to table surface | mm (in) | 85~695 (3.3" ~ 27.3") |
| Distance from spindle center to column | mm (in) | 688 (27") |
| Table | ||
| Table dimension | mm (in) | 1,120 × 610 (44" x 24") |
| Max. loading weight | kg (lb) | 800 (1,763) |
| T-slots (W x No. x P) | mm (in) | 18 x 5 x 100 (0.7" x 5 x 3.9") |
| Spindle | ||
| Spindle speed (OPT) | rpm | 10,000 (12,000 / 15,000) |
| Spindle motor | kW (HP) | 11 / 15 (20HP) |
| Spindle taper | type | 7/24 taper No.40 |
| Automatic Tool Changer | ||
| ATC type | type | Arm type |
| Tool shank | type | BT-40 |
| Pull stud | type | P-40T (45°) |
| Tool storage capacity (OPT) | pcs. | 24 (30 / 32 / 40) |
| Max. tool diameter | mm (in) | Ø80 (Ø3.1") |
| Max. tool diameter (Adjacent empty) | mm (in) | Ø150 (Ø5.9") |
| Max. tool length | mm (in) | 250 (9.8") |
| Max. tool weight | kg (lb) | 7 (15) |
| Tool change time (Tool to Tool) | sec. | 2.5 |
| Tool change time (Chip to Chip) | sec. | 7 |
| Feedrate | ||
| Rapid feedrate (X / Y / Z) | m (in) /min | 48 / 48 / 32 (1,889.7 / 1,889.7 / 1,259.8) |
| Cutting feedrate | mm (in) /min | 10,000 (393.7) |
| Other | ||
| Floor plan (W × D) | mm (in) | 3,330 × 2,350 (131" x 92") |
| Machine weight | kg (lb) | 7,100 (15,652) |
| Max. machine hight | mm (in) | 2,770 (109") |
| Air source | kg/cm2 (PSI) | 6~8 (85~113) |
| Power capacity | KVA | 25 |
