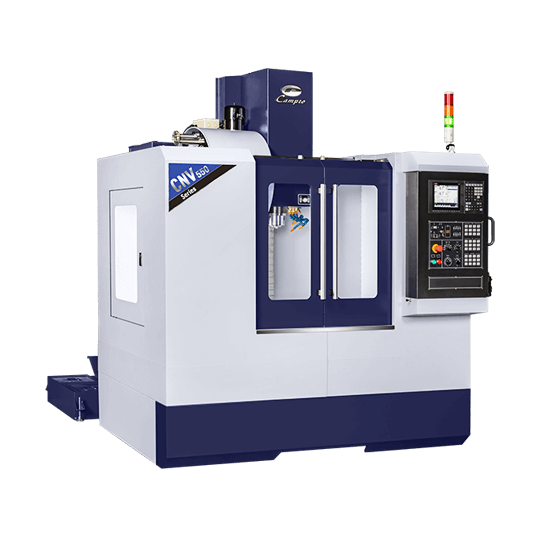

Vertical Machining Center
CNV-550
X:550 / Y:430 / Z:480 (mm)
The cast iron construction was designed using "Finite Element Analysis (FEA) and Advanced 3D Software and is extremely rigid and provides extremely accurate machining capabilities as well as high metal removal rates.
The CNV series was ergonomically designed from the movable control panel to chip disposal and many other design features to reduce operator fatigue and increase working efficiency.
Feature
Innovative Design Concepts

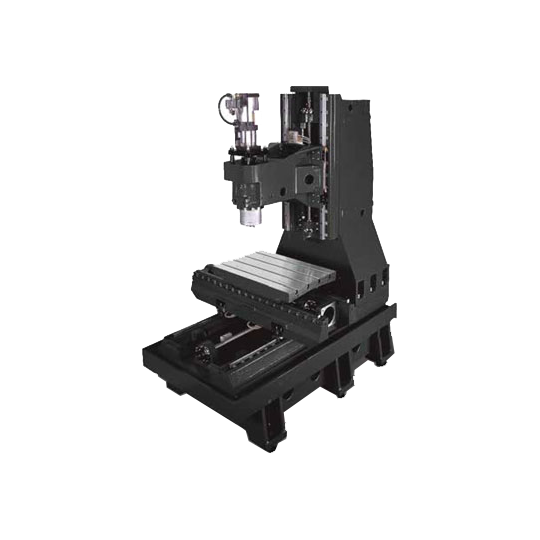

The high cast-iron construction meets maximum rigidity and accuracy be designed via Finite Element Analysis(FEA) and advanced 3D software.
All axes are equipped precision linear guide ways, direct drive servo motor with coupling and without counter-balance on Z-axis ensuring machining accuracy.
User-friendly operation is designed as easy to chip disposal and ergonomically control panel enable to swivel 0~75 degrees to reduce operator fatigue and increase working efficiency.
Machine Specification
| Item | Unit | CNV-550 |
|---|---|---|
| Travel | ||
| X axis travel | mm (in) | 550 (21.6") |
| Y axis travel | mm (in) | 430 (16.9") |
| Z axis travel | mm (in) | 480 (18.8") |
| Distance from spindle nose to table surface | mm (in) | 100~580 (39" ~ 22.8") |
| Distance from spindle center to column | mm (in) | 485 (19") |
| Table | ||
| Table dimension | mm (in) | 650 × 430 (25.5" x 16.9") |
| Max. loading weight | kg (lb) | 300 (661) |
| T-slots (W x No. x P) | mm (in) | 14 x 4 x 100 (0.5" x 4 x 3.9") |
| Spindle | ||
| Spindle speed (OPT) | rpm | 8,000 (10,000 / 12,000 / 15,000) |
| Spindle motor | kW (HP) | 7.5 / 11 (15) |
| Spindle taper | type | 7/24 taper No.40 |
| Automatic Tool Changer | ||
| ATC type (OPT) | type | Arm type (Carrousel) |
| Tool shank | type | BT-40 |
| Pull stud | type | P-40T (45°) |
| Tool storage capacity (OPT) | pcs. | 20 (16) |
| Max. tool diameter | mm (in) | Ø80 (Ø3.1") |
| Max. tool diameter (Adjacent empty) | mm (in) | Ø130 (Ø5.1") |
| Max. tool length | mm (in) | 250 (9.8") |
| Max. tool weight | kg (lb) | 7 (15) |
| Tool change time (Tool to Tool) | sec. | 2.5 |
| Tool change time (Chip to Chip) | sec. | 7 |
| Feedrate | ||
| Rapid feedrate (X / Y / Z) | m (in) /min | 30 / 30 / 30 (1,181.1 / 1,181.1 / 1,181.1) |
| Cutting feedrate | mm (in) /min | 10,000 (393.7) |
| Other | ||
| Floor plan (W × D) | mm (in) | 2,240 × 2,670 (88" x 105") |
| Machine weight | kg (lb) | 3,000 (6,613) |
| Max. machine hight | mm (in) | 2,520 (99") |
| Air source | kg/cm2 (PSI) | 6~8 (85~113) |
| Power capacity | KVA | 15 |
